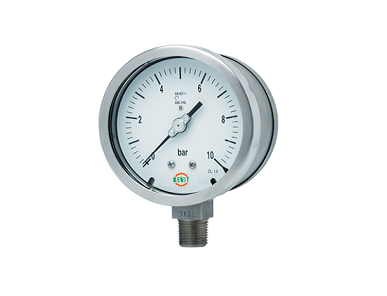

Standard Full SS Pressure Gauge

Dial Size : 50mm, 63mm, 80mm, 100mm, 125mm, 150mm & 250mm

Ranges : -1 to 0....0.6 to 2100 bar

Wetted Parts : SS 316L & Monel

Mounting : Bottom, Back and with mounting bracket accessories

Accuracy : CL 0.5, CL 1.0 & CL 1.6

Dampening Liquid : Dry, Fillable & Filled

Standard followed : EN837-1, ANSI B40.1, IS 3624 & other National / International Standards

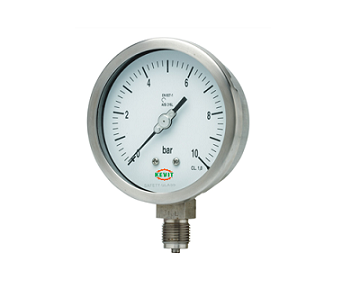

Solid Front Full SS Pressure Gauge

Dial Size : 63mm, 100mm & 150mm

Ranges : -1 to 0....0.6 to 2100 bar

Wetted Parts : SS 316L & Monel

Mounting : Bottom, Back and with mounting bracket accessories

Accuracy : CL 0.5, CL 1.0 & CL 1.6

Dampening Liquid : Dry, Fillable & Filled

Standard followed : EN837-1, ANSI B40.1, IS 3624 & other National / International Standards

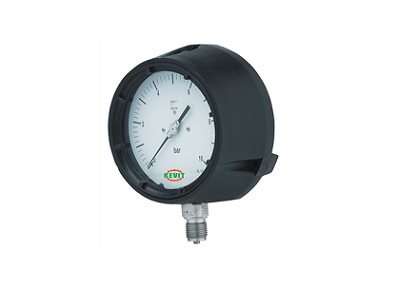

Phenol Case Solid Front Pressure Gauge

Dial Size : 4.5”

Ranges : -1 to 0....0.6 to 2100 bar

Wetted Parts : SS 316L & Monel

Mounting : Bottom, Back and with mounting bracket accessories

Stem Mounting :

Accuracy : CL 0.5

Dampening Liquid : Dry, Fillable & Filled

Standard followed : ANSI B40.1

SS Case Brass Pressure Gauge

Dial Size : 40mm, 50mm, 63mm & 100mm

Ranges : -1 to 0....0.6 to 700 bar

Wetted Parts : Copper Alloy

Mounting : Bottom, Back and with mounting bracket accessories

Accuracy : CL1.6 & CL 2.5

Dampening Liquid : Dry, Fillable & Filled

Standard followed : EN837-1, ANSI B40.1, IS 3624 & other National / International Standards

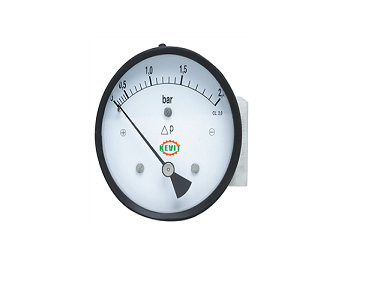

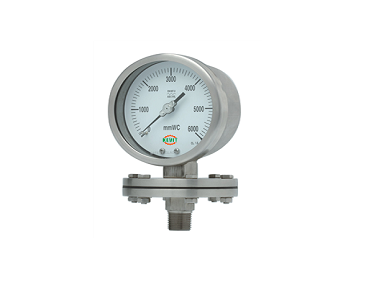

Low Pressure Diaphragm Pressure Gauge

Dial Size : 100mm & 150mm

Ranges : 1bar to 16bar & 0....250mmWC

Wetted Parts : SS 316, Monel & Hastelloy 'C-276'

Mounting : Bottom, Back and with mounting bracket accessories

Accuracy : CL 1.6

Standard followed : EN837-1, ANSI B40.1, IS 3624 & other National / International Standards

Electric Contact Standard Full SS Pressure Gauge

Dial Size : 100mm & 150mm

Ranges : -1 to 0....0.6 to 2100 bar

Wetted Parts : SS 316L & Monel

Mounting : Bottom, Back and with mounting bracket accessories

Accuracy : CL 0.5, CL 1.0 & CL 1.6

Dampening Liquid : Dry, Fillable & Filled

Standard followed : EN837-1, ANSI B40.1, IS 3624 & other National / International Standards

Contact Type : Magnetic Snap Action & ATEX Inductive Contact

No. of Contacts : Single, Double & Triple Contacts for ON / OFF action

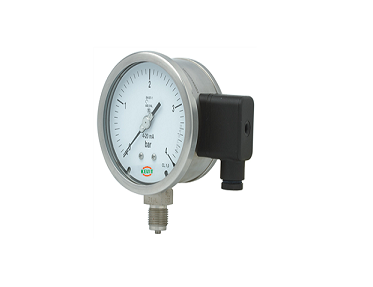

Transmitter Full SS Pressure Gauge

Dial Size : 100mm & 150mm

Ranges : -1 to 0....0.6 to 600 bar

Wetted Parts : SS 316L & Monel

Mounting : Bottom, Back and with mounting bracket accessories

Accuracy : CL 0.5 (Transmitter)

Transmitter : 2 Wire, 24V DC

Dampening Liquid : Dry, Fillable & Filled

Standard followed : EN837-1, ANSI B40.1, IS 3624 & other National / International Standards

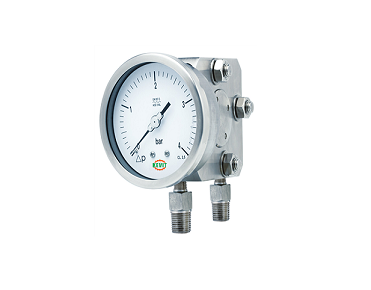

Differential Pressure Gauges - Single & Double Diaphragm

Type : Single & Double Diaphragm

Dial Size : 100mm & 150mm

Ranges : -6000mmWC to 0 250mmWC to 16bar

Static Pressure : 60 bar (Single Diaphragm) & 100bar (Double Diaphragm)

Wetted Parts : SS 316, Monel & Hastelloy 'C-276'

Mounting : Bottom, Back and with mounting bracket accessories

Accuracy : CL1.6 & CL 2.5

Standard followed : EN837-1, ANSI B40.1, IS 3624 S. other National / International Standards

Differential Pressure Gauges - Piston Operated

Dial Size : 63mm, 100mm & 150mm

Ranges : 25mbar to 4bar 200bar

Static Pressure : 200bar

Wetted Parts : SS 316

Mounting : Bottom, Back and with mounting bracket accessories

Accuracy : CL1.6 & CL 2.5

Utility Pressure Switches

Repeatability : ± 2% F.S.

Sensing Elements : Phosphor Bronze Bellow

Switch : 1 SPDT, 15A,220 VAC / 10A,24 VDC

Mounting : Bottom / Panel

Enclosure Material : Steel (plated) with Plastic cover

Weather Proof Pressure Switches

Repeatability : ± 0.5% F.S.

Sensing Elements : AISI 316 SS, Diaphragm

Switch : 1 SPDT, 15A,250 VAC / 2A,24 VDC (Others on request)

Mounting : Bottom / Panel

Enclosure Material : Aluminum pressure die cast

Explosion /Flame Proof Pressure Switches

Repeatability : ± 0.5% F.S.

Sensing Elements : AISI 316 SS, Diaphragm

Switch : 1 SPDT, 15A,250 VAC / 2A,24 VDC (Others on request)

Mounting : Bottom / Panel

Enclosure Material : Aluminum pressure die cast

Explosion /Flame Proof Differential Pressure Switches

Repeatability : ± 0.5% F.S.

Sensing Elements : AISI 316 SS, Diaphragm

Switch : 1 SPDT, 15A,250 VAC / 2A,24 VDC (Others on request)

Mounting : Bottom / Panel

Enclosure Material : Aluminum pressure die cast

Smart Absolute / Gauge Pressure Transmitter

Product : Pressure Transmitter

Precision : 0.075% of Span for all ranges

Turn Down Ratio : 100:1 for all models

Stability : ±0.15% of URL

Differential Pressure Transmitter

Measuring range : 200Pa-10MPa

Output signal : 4-20mA, 4~20mA/HART

Accuracy : ±0.075% URL, optional ±0.05% URL

Media temperature : -40-120℃

Power supply : 4~20mA two wire, 10.5-55vdc 4~20mA+HART two wire, 16.5-55vdc

Diaphragm material : SUS316L, Hastelloy C

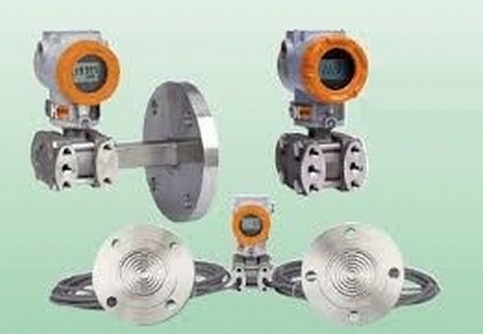

Capillary / Direct Flanged Type DP / Level / Flow Transmitter

Measuring range : 4kPa-1MPa

Output signal : 4-20mA, 4~20mA/HART

Accuracy : ±0.2% URL, ±0.5% URL

Media temperature : -40-120℃

Diaphragm material : SUS316L, Hastelloy C

Miniature / Fixed Range Type - Flush Type / Diaphragm Type Pressure Transmitter

Product : Pressure Transmitter

Range : Vacuum To 2200 bar

Long Term Drift : 0.25% FS/YR (non-cumulative)

Wetted Parts : 17-4 PH Stainless Steel

Supply Voltage : 8-30 V DC

Output(2-wire) : 4-20 mA / 0-10 V /1 -5 V

Output signal : 4-20mA, 4-20mA+HART, 0-5VDC

Gauge Cock

Type : 2-Way or 3-Way

Connection : BSPP, NPT etc.

Material : SS304, SS316, SS316L etc.

Pressure : 100bar

Siphon

Type : Coil. Pigtail (Q), U

Connection : BSPP, NPT etc.

Material : SS304, SS316, SS316L etc.

Pressure : According pipe size & schedule

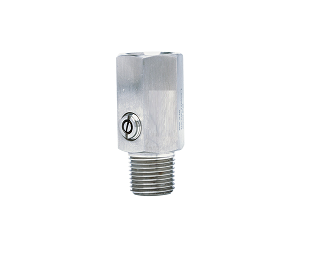

Gauge Saver

Type : Bellow, Piston

Range : 0.6 bar to 400 bar

Connection : BSPP, NPT etc.

Material : SS304, SS316, SS316L, Monel, Hastelloy 'C-276' etc.

Pressure : 600bar

Pulsation Dampener

Type : Adjustable Screw

Connection : BSPP, NPT etc.

Material : SS304, SS316, SS316L, Monel, Hastelloy 'C-276' etc.

Pressure : 400bar

Flushing Ring

Material : Alloy Steel, Stainless Steel, Duplex Steel, Nickel Alloys, Superalloys, Titanium, Tantalum

Connection : In-built with Seal, As per Flange Size 6 rating

Diaphragm Seal

Type : Insert Diaphragm, Flush Diaphragm, Extended Neck, l-Section

Range : -1bar to 0....0.6 bar to 1000bar

Connection : Threaded, Flanged as per ANSI or API and National / International Standard

Flange Connection : Alloy Steel, Stainless Steel, Duplex Steel, Nickel Alloys, Superalloys, Titanium, Tantalum

Diaphragm : SS 316L, Monel, Inconel, Hastelloy 'C-276', PTFE,Titanium, Tantalum etc.
