Bimetal Temperature Gauge

Dial Size : 63mm, 80mm, 100mm, 125mm & 150mm

Ranges : -100°C to 0... 50°C to 650°C

Stem Sizes : 6.0mm, 6.35mm, 8.0mm, 9.5mm, 10mm & 12.0mm

Mounting : Bottom, Back, Elbow & Every Angle

Accuracy : CL 1.0

Dampening Liquid : Dry, Fillable & Filled

Standard followed : EN13190 & other National / International Standards

Inert Gas Filled Temperature Gauge

Dial Size : 100mm, 125mm & 150mm

Ranges : -100°C to 0... 50°C to 650°C

Stem Sizes : 6.0mm, 6.35mm, 8.0mm, 9.5mm, 10mm & 12.0mm

Mounting : Bottom, Back & Every Angle with mounting bracket accessories

Stem Mounting : With Capillary & without Capillary

Accuracy : CL 1.0

Dampening Liquid : Dry, Fillable & Filled

Standard followed : EN13190 & other National / International Standards

Electric Contact Temperature Gauge

Dial Size : 100mm, 125mm & 150mm

Ranges : -100°C to 0... 50°C to 650°C

Stem Sizes : 6.0mm, 6.35mm, 8.0mm, 9.5mm, 10mm & 12.0mm

Mounting : Bottom, Back & Every Angle with mounting bracket accessories

Stem Mounting : With Capillary & without Capillary

Accuracy : CL 1.0

Dampening Liquid : Dry, Fillable & Filled

Standard followed : EN13190 & other National / International Standards

Contact Type : Magnetic Snap Action & ATEX Inductive

No. of Contacts : Contact Single, Double & Triple Contacts for ON / OFF action

Smart Type Field Mounted With LCD Display Temperature Transmitters

Product : Smart Temperature Transmitter

Type : Field mounted

Material of Construction : Head Die-cast Aluminum/AISI 316 SS

Input : Thermocouple / RTD

Output : 4-20 mA HART

Zero/Span Adjustment : Potentiometer

Galvanic Isolation : 1500 VAC, 1 min

Accuracy : (±0.1%) of Span

Power Supply : 24 VDC

Hazardous Area : ATEX, UL

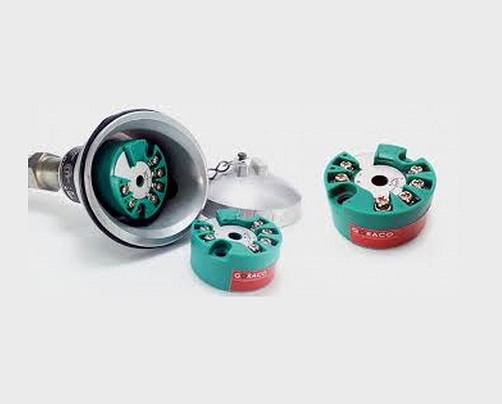

Head Mounted Type Temperature Transmitter

Designed for : RTD PT100 & Thermocouples (Universal input)

Output : Signal 4-20mA two wires

Configurable measuring ranges

Large ambient temperature range

Compact and inexpensive

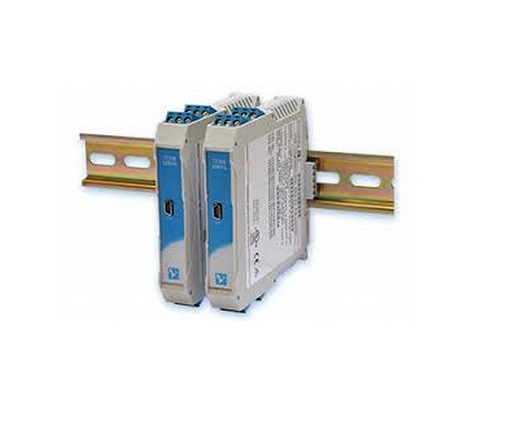

DIN Rail Mounted Temperature Transmitters

Sensor Range : -200 to 850 °C [18 to 390 Ω]

Minimum Span*¹ : 25 °C

Measurement Accuracy : ± 0.01 % FRI*³ ± 0.05 % rdg

Thermal Drift Zero : 0.008 °C/°C

Excitation Current : 300 to 550 µA

Span : 0.01 %/°C

Accuracy : (±0.1%) of Span

Maximum Lead Resistance : 50 Ω/leg

Lead Resistance Effect : 0.002°C/Ω

Thermowells

Construction : Barstock Fabricated

Connection : Threaded, Flanged, Vane Stone etc.

Material : Alloy Steel, Stainless Steel, Duplex Steel, Nickel Alloys, Superalloys, Titanium, Tantalum

Resistance Temperature Detector

Connection : Fixed, Adjustable, Nipple, N-U-N, Flanged & Threaded

Element : Pt100, Pt500 & Pt1000

Accuracy : Class A, Class B

Sheath : Mineral Insulated Cable

Enclosure : Aluminium, SS with IP65, IP66, IP67, IP68, Ex-proof, Flameproof, ATEX

Thermocouple

Connection : Fixed, Adjustable, Nipple, N-U-N, Flanged & Threaded

Element : J, K, T, E, N, R, S, U, B

Accuracy : Class 1

Sheath : Mineral Insulated Cable

Sheath : SS 316, SS310, SS446, Inconel 600, Inconel 800

Enclosure : Aluminium, SS with IP65, IP66, IP67, IP68, Ex-proof, Flameproof, ATEX
